KALİTE
EN 10025 S235/S275/S355 JR-J0
ASTM A36/A570/A615/A572/GR40/GR50/GR60
HADDELEME TOLERANSI
EN 10056
ASTM A6
DIN 1028

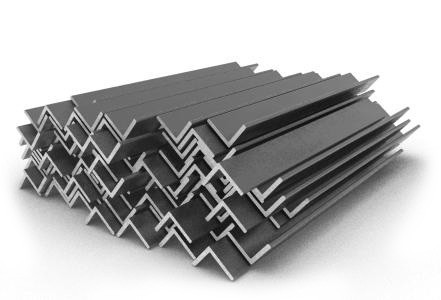

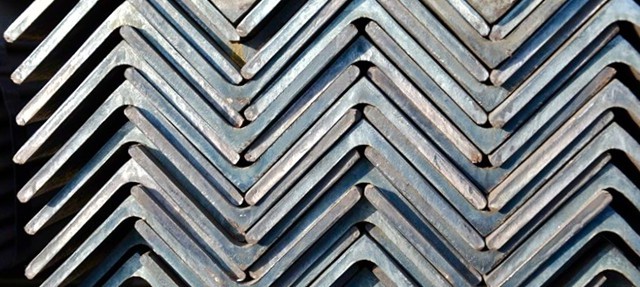

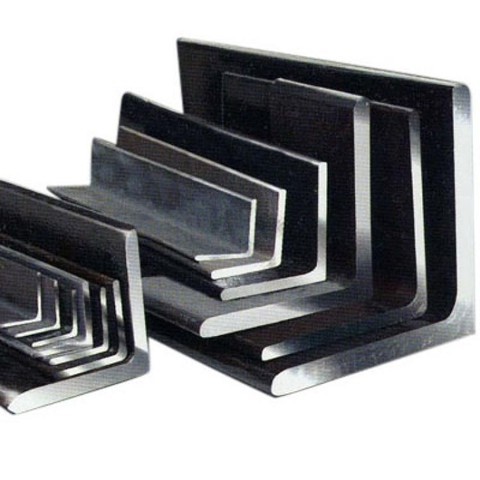

Boyut (mm) Ağırlık kg/m)
19 x 19 x 1,9 0,538
20 x 20 x 3 0,879
25 x 25 x 2,5 0,939
25 x 25 x 3 1,114
25 x 25 x 4 1,452
30 x 30 x 2,5 1,15
30 x 30 x 3 1,363
30 x 30 x 4 1,779
35 x 35 x 2,5 1346
35 x 35 x 3 1,599
35 x 35 x 4 2,093
35 x 35 x 5 2,572
40 x 40 x 3 1,844
40 x 40 x 4 2,417
40 x 40 x 5 2,974
45 x 45 x 3 2,101
45 x 45 x 4 2,753
45 x 45 x 5 3,389
50 x 50 x 3 2,326

Boyut (mm) Ağırlık (kg/m)
50 x 50 x 4 3,056
50 x 50 x 5 3,77
50 x 50 x 6 4,469
60 x 60 x 4 3,696
60 x 60 x 6 5,423
65 x 65 x 7 6,827
70 x 70 x 7 7,377
75 x 75 x 5 5,76
80 x 80 x 6 7,338
80 x 80 x 7 8,492
80 x 80 x 8 9,63
80 x 80 x 9 10,753
90 x 90 x 8 10,904
90 x 90 x 9 12,183
100 x 100 x 8 12,179
100 x 100 x 10 15,037
120 x 120 x 10 18,198
120 x 120 x 12 21,62
